No. |
Description |
Photo |
1 |
Portable rail cutting machine:
Honda China 6.5P engine, 3600 r/min, Cut disk: φ350xφ32x4mm, Range: for 43-75kg/m rail, Tolerance max 0.5mm, Cutting speed: for 60kg/m rail 1-1.5 minutes, Size: 500x500x600mm, Weight 53kg |
|
Cut disk: φ350xφ32x4mm |
2 |
Portable impact wrench: For tightening and losing any bolts, also can drill hole on wooden sleeper. Includes three Sockets for hexagon nuts 36mm
Japanese Komatsu 1.47kw engine, Run speed 2700r/min, Loading run speed: 7120-9880r/min, Tightening torque range: 550-1700N.m, Weight: 18kg, Size: 650x280x380mm. |
|
Drill bits of diameter 21mm |
Drill bits of diameter 18mm |
3 |
Coach screwing machine: Serves to fasten and loosen all types of coach screws, rail fasteners. Includes 3 sockets for each kind of tracks screws.
Honda China 6.5P engine, Run speed: min 110r/min, Tightening torque adjustable: 80-200N.m, Loosing torque: min 50-600N.m, Weight: max 75kg |
|
4 |
Rail drilling machine: Max diameter is 36mm.
Honda Japan 1.2KW engine GX35, Diameter of hole φ9.8-31mm, Power 1.2KW Honda GX35, 270r/min, Accuracy 0.2mm, Time 30-45 seconds, Weight 17kg, Size: 650x230x250mm. |
|
Diameter 21mm drill |
Diameter 34mm drill |
5 |

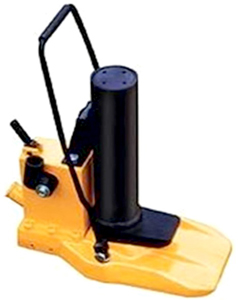

Hydraulic rail lifting jack:
Hydraulic rail Jack, 20 tons, lifting distance 200mm, Oil cylinder diameter 70mm, Pressure 56Mpa, Weight 28kg |
|
6 |
Hydraulic track aligner:
Hydraulic rail gap adjuster, Rated power of pull and push: 400kN, Cylinder piston working stroke: 140mm, Rated pressure: 52MPa, No-load efficiency: min 2.0mm/time, Handle operating moment of force: max 450N.m, Weight: 133kg |
|
7 |
Instrument for adjusting gauge:
Mechanical gauge adjuster, horizontal stress 5-7 T, Adjust distance: 50mm, Weight: 10kg |
|
8 |
Hydraulic rail straightener (bender):
Rated power of straightening: 660kN, Rated pressure: 51MPa, Fulcrum distance: 200-290mm, Handle moment: max 400N.m, Weight: 95kg, Size: 836x705x326mm |
|
9 |
Digital Track gauges:
Measure range: 1410-1470mm, Level measure range: -185-+185mm, Ultra high resolution: 0.20mm, Gauge resolution: 0.01mm, Gauge indicates max tolerance: 0.25mm, Ultra high indicates max tolerance: 1.20mm, Max tolerance of ultra high level zero: 0.60mm |
|
10 |
Rail wear measuring instrument: Measure range: Vertical wear 0-20mm, Side wear 0-20mm, Accuracy 0.01mm, Reading accuracy 0.01mm, Repeatability tolerance +-0.02mm for 50kg & UIC60 rail |
|
11 |
Digital thermometer:
Magnetic adsorption, Measure range of Celsius: -30°C-70°C, Display accuracy 0.1, Charger voltage: 5V 1-2A |
|
12 |
Manual socket wrench:
Dimension of screw head 28*24mm, Length of socket wrench 70-100cm. Length of T-handle 50-60cm. |
|
13 |
Tamping pick:
Length of pick head 50mm, with wooden hundle 100cm length, Weight 2kg |
|
14 |
Special lever:
Required quantity: Fork edge: 66 lever, 1.5m, 6kg; Line edge: 66 lever, 1m, 3kg |
.jpg)
|
|
|
Our Exportable flat bottom rails:
I. Rail for Railway
1. Chinese Standard: TB/T2344-2012, TB/T3276-2011
43 kg/m rail, 50 kg/m rail, 60 kg/m rail, 75kg/m rail, 60N rail, 75N rail
Material: U71Mn, U75V, U76CrRE, U20Mn
2. GOST Standard: GOST-R51685
P50 rail/R50 rail, P65 rail/R65 rail, P75 rail/R75 rail
Material: K76, M76T
3. DIN Standard: DIN5901-1955
S10, S14, S18, S20, S30, S33, S41, S49 rail, UIC54 rail, UIC60 rail
Material: 900A, 350HT
4. Japanese & Korean Standard: JIS E1101
JIS15kg, JIS22kg, JIS30kg, JIS37A, JIS50N rail, JIS60 rail, CR73, CR100 rail
Material: 235HBW, 340HH, 370HH
5. Australian Standard: AS1085, BHP RT STD
AS50 rail, AS60 rail, AS68 rail, AS73, AS86, AS89 rail
Material: R260, R320, R350HT
6. AREMA Standard: ASTM A1
ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90 RA rail, 100 RE rail, 115 RE rail, 132 RE rail, 136 RE rail, 175LBS rail
Material: SS, HH, 700/900A/1100
7. AREMA Standard: ASTM
TR45 rail, TR50 rail, TR57 rail, TR68 rail
Material: R260, R320, 350HT
8. BS Standard: BS11-1985
BS50 O rail, BS60A rail, BS60R rail, BS70A rail, BS75A rail, BS75R rail, BS80A rail, BS80R rail, BS90A rail, BS100A rail, BS113A rail.
Material: 700, 900A, 1100
9. EN Standard: EN 13674-1
49E1/49E2 rail, 50E1/50E2/50E4/50E5/50E6 rail, 54E1/54E2/54E3 rail, 55E1, 60E1 rail, 60E2 rail
Material: R260, R320Cr, R350HT
10. ISCOR South African standard rail
ISCOR 15, ISCOR 22, ISCOR 30, ISCOR 48 rail, ISCOR 57 rail
Material: 700, 900A
11. ISCR Indian standard: IS 3443
ISCR 70, ISCR 80, ISCR 100, ISCR 120 rail
Material: U71Mn
II. Switch Rail
Standard: TB/T3109-2013
50AT1 rail, 60AT1 rail, 60AT2 rail, 60TY1 rail
Material: U71Mn, U75V, U76CrRE
III. Crane Rail
1. Standard: YB/T5055-2014, QU70 rail/KP70 rail, QU80 rail/KP80 rail, QU100 rail/KP100 rail, QU120 rail/KP120 rail.
Material: U71Mn, 900A
2. ASTM A759-2000 crane rail: CR175 rail, Material: 900A/1100
3. DIN536 crane rail: A45, A55, A65, A75, A100, A120, A150 crane rail. Material: 900A
IV. Grooved Rail
Standard: EN 14811:2006
59R1/59R2 rail, 60R1/60R2 rail
Material: U75V |
